Description

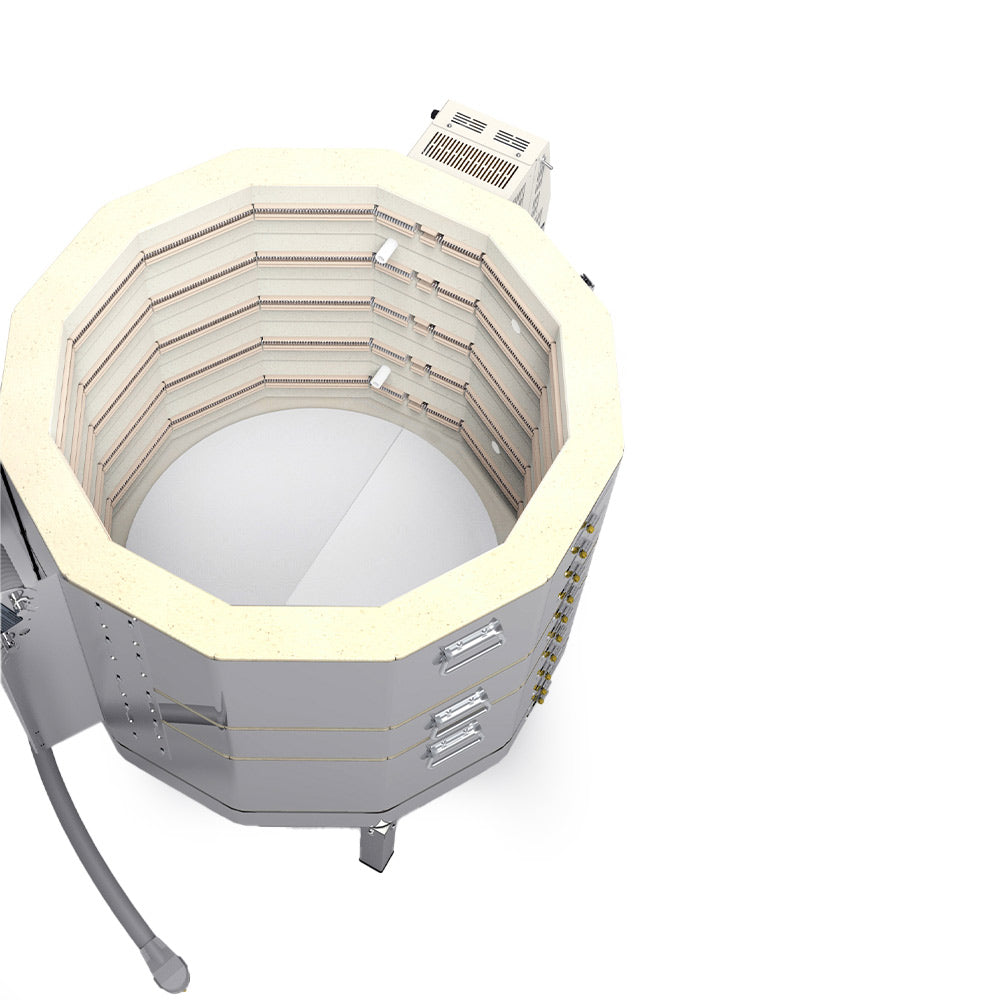

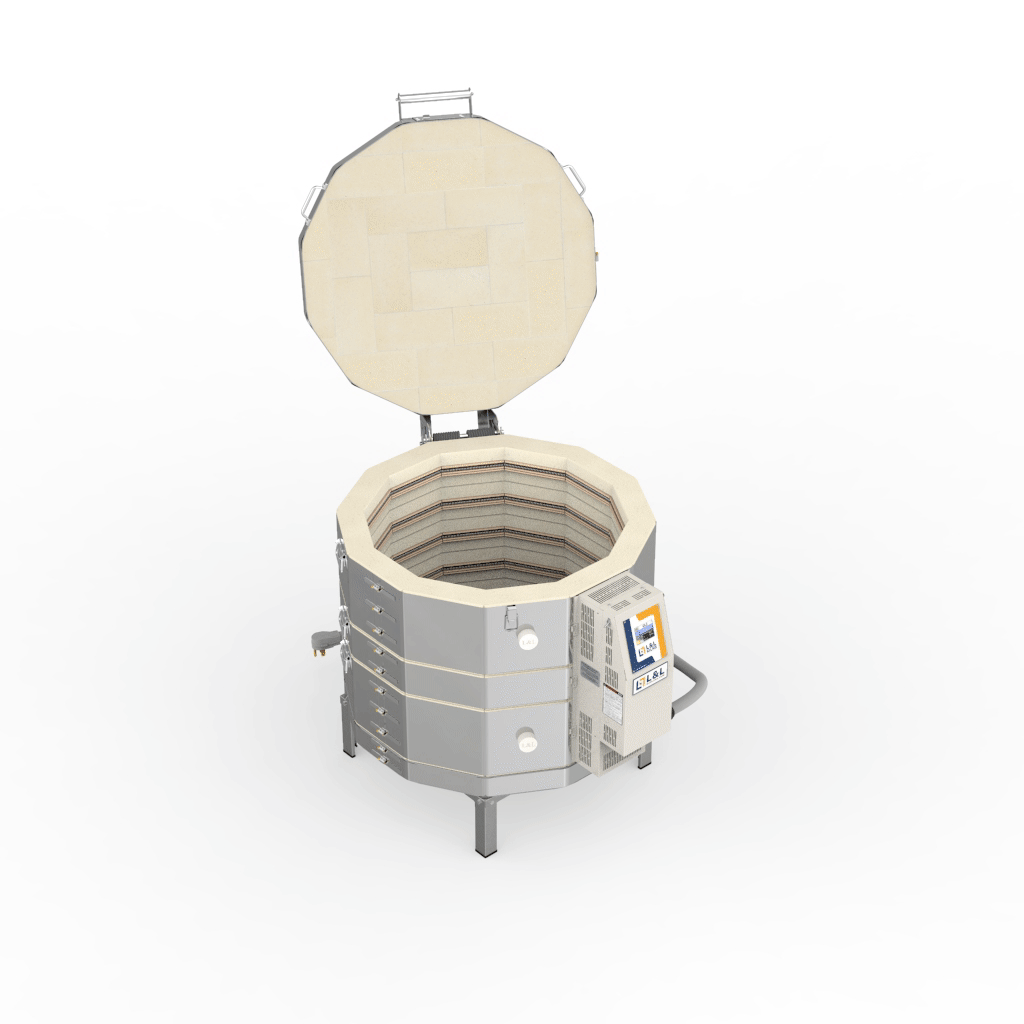

L&L e28M-3 EASY-FIRE KILN28″ diameter x 22.5″ height inside.approximately 8.5 cubic feet.Requires 60 amp breaker at 240/1 residential power.The e28M-3 is a wide kiln making it perfect for platters and other flatter projects. The lower height 22.5″ makes it easy to load but still gives you a lot of space ! The 28″ L&L Easy-Fire kilns all include 3″ brick for better insulation and lower firing costs.The easy-fire kiln meets the needs of teachers, institutions, camps, hobbyists, potters and others who need an easy to operate, easy to set up, easy to maintain, easy to understand, and easy to buy kiln. It has L&L’s robust and time-proven technology like ceramic element holders, industrial-grade element terminals, ceramic thermocouple protection tubes, heavy-duty elements, corrosion resistant materials, “Easy-Open, Easy-Load” spring hinge, removable control panel and zone control with four “Easy-Fire” programs. Get everything you need for one easy price. Specifications and FeaturesFeaturesInternal Size: 28″ diam x 22.5″ highCubic Feet: approx 8.5Number of Sections: 3Brick: 3″ of premium select K23 Max Temp: 2350F, 1287C, Cone 10 at 240/1, 240/3, 208/3. Cone 8 at 208/1Control: DynaTrol with Dynamic Zone Control, 4 preset programs, 6 user defined programsThermocouples: Two Heavy-duty 8 gauge with industrial ceramic protection tubesHinge: Easy-Lift, Easy-Load Spring HingeStand: Full Support Aluminized standControl Panel Mount: Piggybacked on insulated terminal boxPower Hook Up: Single phase only. Gets a 50 amp 6-50P cordThree Year Warranty Optional Vent Sure System By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. easyfire kilns and the Vent-Sure vent system are c-UL-us listed.
