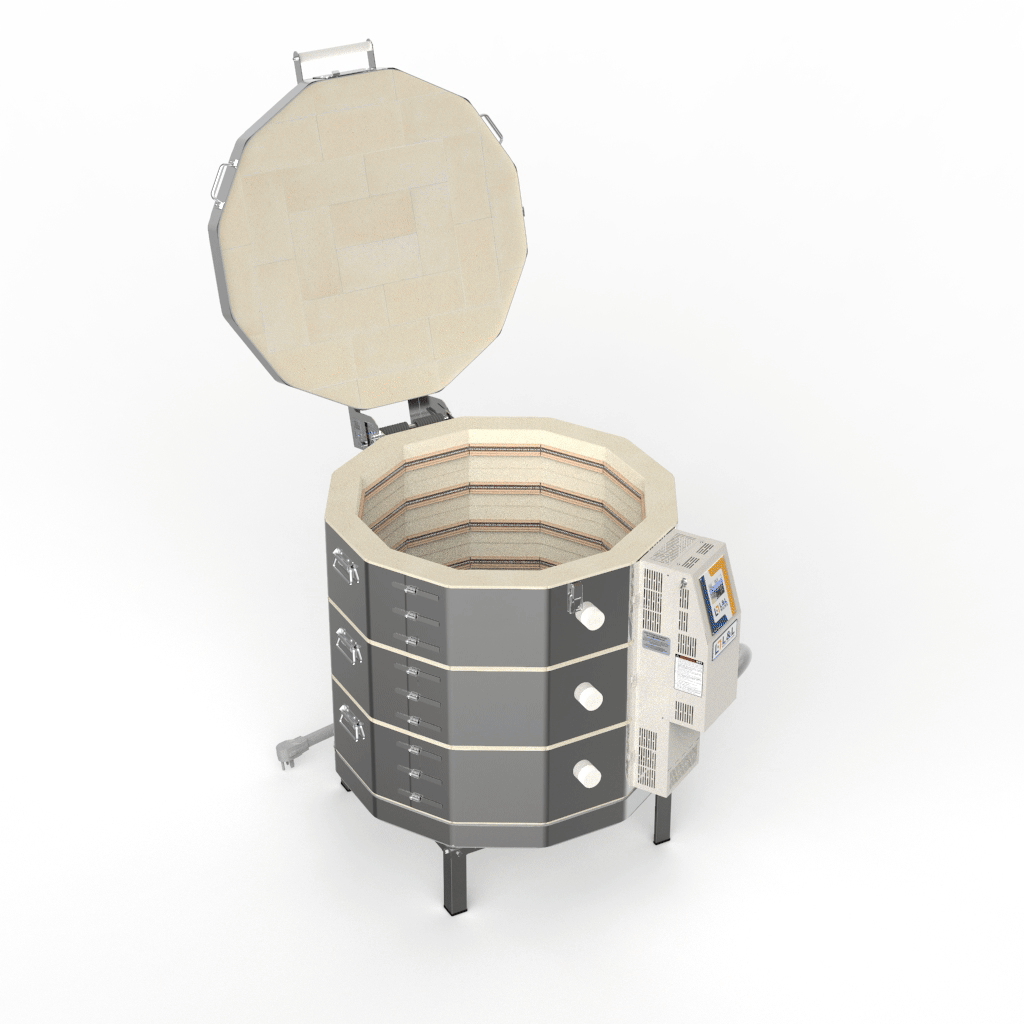

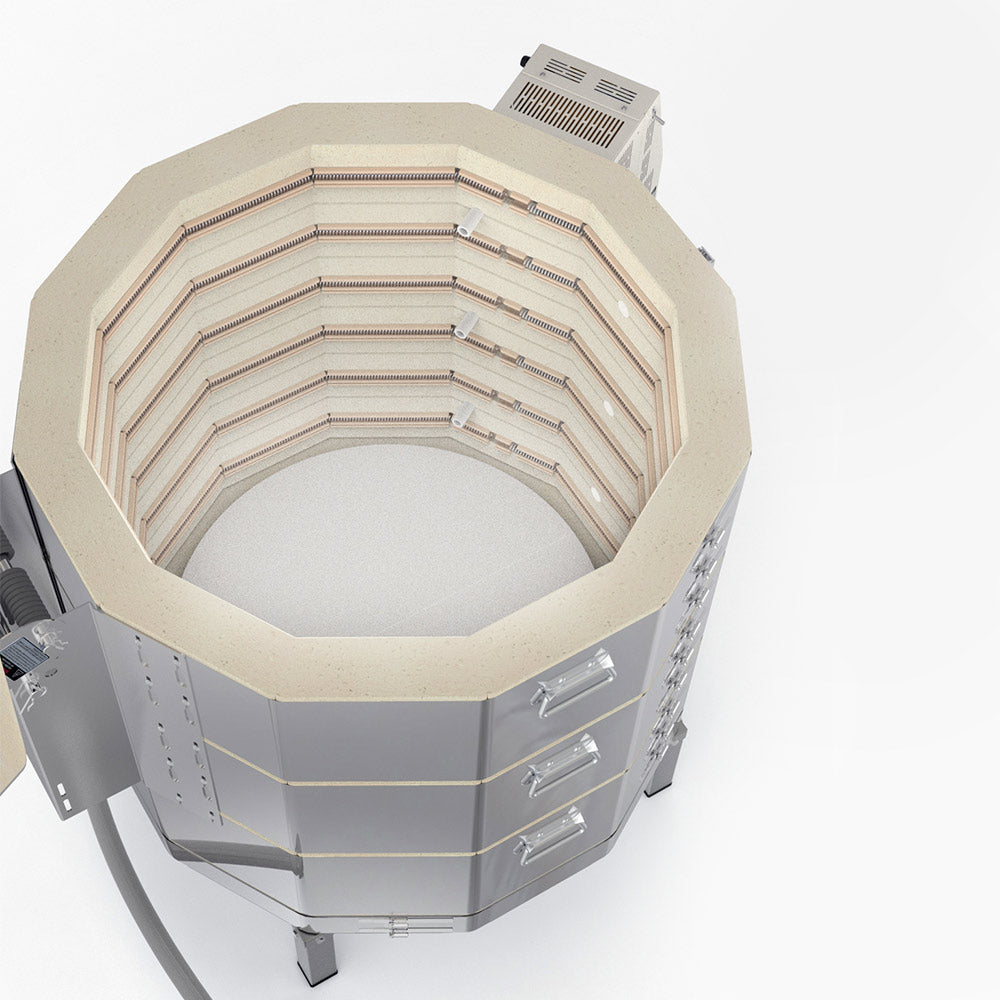

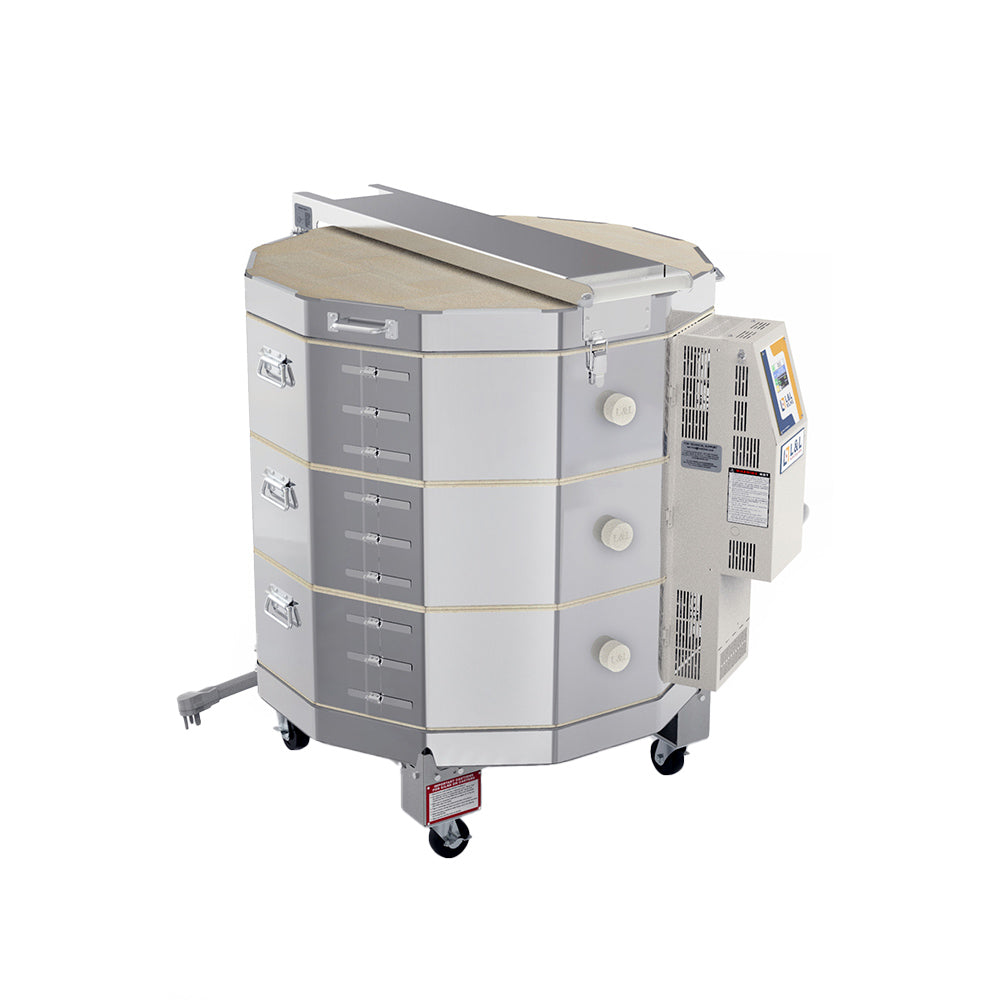

L&L Kilns e28T-3 Pottery Kiln3″ Brick. 10.2 cubic feet for bisque, low-fire and mid-fire ceramicsL&L model e28T-3 Easy-Fire Kiln is a large studio kiln. It is recommended as a bisque kiln or for low-fire ceramics. This kiln is at home in schools and contemporary studios.If you want this size and need to do cone 6 or higher then consider the L&L EQuad Pro 2827 : here.The L&L Easy Fire Kilns feature easy firing with the 12 Key DynaTrol digital controller. Select the upgrade to the state of the art, wiFi enabled Genesis Touch Screen Controller. The controller is mounted in an easy-open cool-firing control panel that is angled for easy viewing. L&L Kilns all come with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all three phase models- see below for single phase.Note about e28T-3 Easy-Fire Kiln on 1 phase powerThe e28T-3 kiln is only rated for Cone 8 when the power supply is 240 volts, 1 phase. It is only rated for Cone 5 when the power supply is 208 volts, 1 phase.A cone rating should be several cones higher than the cone you plan to fire to. Elements in a kiln that is rated for cone 8 will not last very long when firing to cone 5 or 6 especially with heavy loads.That said- if you answer yes to any of these following questions, you probably want to go with a more powerful L&L, like the JD2927-3 (if you need UL listing). Both of these kilns, in the single phase versions, have more power (watts) than the e28T-3 and will consistently deliver the power you need to reach Cone 6. On the other hand, both the 240 and 208 volt three phase versions of the e28T-3 deliver plenty of power (watts), so this note does not apply to three phase e28T-3 models.Do you fire to Cone 5 or 6 at least twice a month?Would you fire with more than 3 layers of kiln shelves in a kiln this size?Can you get a larger circuit breaker? (80 amp breaker for 240 volts, 1 phase OR 90 amp breaker for 208 volts, 1 phase)NOTE: If the largest circuit breaker you can have is a 60 amp breaker on 240 volts, 1 phase power, you should either get a smaller L&L- like the e23T-3 , or count on changing the elements often- about every 30 or so firings. Another help is to get the Quad element option. With the Quad element option the elements will last longer but you won’t get any more power in the kiln (so you could still get slow firings).Features Element Support Hard Ceramic Element Holders Element Terminations Stainless Bolts on Ceramic Blocks, no special tools neededZone Control Included at no extra cost (three zones)Thermocouples Heavy-duty 8 gauge with Ceramic Protection Tubes (3)Hinge Spring-Assist reduces weight of lidHinge Support Bars No – nothing to get in way of loadingDoor Angle When Open To the back (doesn t hang over opening)Hinge Safety Latch Yes. Locking plunger pin, very positive & secureStand Full support, 14 ga aluminized steel with rigid bendsElements Heavy-DutyBrick Coating Reflective coating on entire interior, hardens brickEasy Delay Start, Preheat, Hold YesNumber of Easy Ceramic Programs FourNumber of User-Defined Programs SixInstructions Complete easy-to-read visual manual, Video includedOn/Off Switch Yes – you can turn kiln offControl Fuse YesControl Panel Removable, separate piggybacked panel for controlPower Cord 6-50P for 1 phase, 15-50P for 3 phaseSectional Construction Yes, easy to move and set upReversible Bottom YesCone Limitation Varies with voltage and phase, See table on first pageBrick Thickness 3”Case Construction Stainless Steel, 3 clamps eachAssembly Screws Stainless SteelSafety Agency Listing c-UL-us listed, Vent-Sure vent is also c-UL-us listedVent Downdraft, fumes under vacuum, motor on wallWarranty Three Year Limited Warranty for both kiln & ventOptional Vent Sure System By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. Easy-fire kilns and the Vent-Sure vent system are c-UL-us listed.
